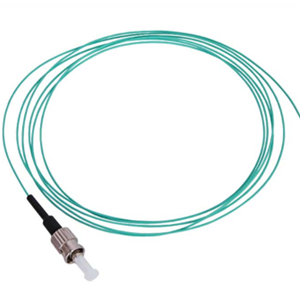

fiber pigtail st mm om1 3m tech supply for FTTB,FTTH Solutions

Product Name: fiber pigtail st mm om1 3m tech supply for FTTB,FTTH Solutions Assembly Type: Pigtail Fiber Core: ---Simplex ---Duplex Polishing: ---PC ---UPC ---APC Fiber Type: ---9/125um ---50/125um ---62.5/125um ---OM3 Cable Diameter:---0.9mm ---2.0mm ---3.0mm Jacket Type: ---LSZH ---PVC Cable Color: ---Yellow ---Orange ---Aqua Pigtail Length: ---1.5M ---3.0M ---5.0M ---Customized Connector Type: ---LC ---SC ---FC ---ST ---MU ---MTRJ ---MPO ---D4 ---DIN ---E2000 ---SMA The fiber tail line refers to a connector similar to a half -jump line that is used to connect the fiber and fiber coupling. It includes a jump connector and a section of fiber. Or connect the transmission device and ODF stand. The tail fiber of an optical cable, also known as a pigtail, has a connector at one end and a broken end at the other end of a fiber core of an optical cable. It is connected to other fiber cores by fusion splicing and often appears in the box of an optical fiber terminal, used to connect fiber optic cable and fiber transceiver (also used between couplers, jumpers, etc.) . Tail fibers are divided into multi-mode and single-mode tail fibers. The multimode tail fiber is orange, with a wavelength of 850nm and a transmission distance of 500m, and is used for short-distance interconnection. The single-mode fiber has two wavelengths, 1310nm and 1550nm, and the transmission distance is 10km and 40km respectively. ITU-T for ITU Telecommunication Standardization Sector, three kinds of common fibers are specified: g. 652 fiber, G. 653 fiber and G. 655 fiber.
